Extended shank E Series oval egg – deep surface blending & long passage finishing
The Extended Shank E Series oval egg shape extends smooth blending capability to 6-inch depth — ideal for finishing port walls at depth, blending surface transitions inside long passages and structural sections, and performing smooth curved surface work in confined areas where a standard shank tool cannot reach. The elongated oval produces longer blending strokes than a ball at extended reach, reducing tool marks on deep passage walls.
SE
series code
6"
shank length
USA
manufactured
Key features & benefits
6-inch extended reach shank
Extends oval egg blending geometry to 6 inches from the collet — finishing port walls, passage transitions, and curved surfaces deep inside long structural and engine passages.
Elongated oval at depth
Longer contact per stroke than a ball at extended reach — reduces the number of passes needed to blend port walls at depth and produces a more even finish than a ball shape in long passage work.
Solid tungsten carbide head
USA-manufactured solid carbide oval head — consistent edge retention across the full oval profile at 6-inch extended reach depth.
Deep port wall finishing
Used after the D Series ball for final wall finishing in deep cylinder head ports — the oval shape smooths ball tool marks and blends port wall transitions at full passage depth.
Double cut & aluma-cut
Double cut for cast iron and steel deep passage finishing. Aluma-cut for aluminum head port wall finishing and manifold runner smooth blending at extended reach.
Wholesale direct pricing
Factory-direct from our USA facility — extended shank oval finishing specialist at competitive wholesale rates.
Materials & applications
Material
Deep-reach applications
Why Extended Shank E Series
Cast iron heads
deep port wall finishinglong passage transition blenddiesel port surface work
Oval produces longer strokes at depth than ball — better port wall finish
Aluminum heads
deep aluminum port finishinglong runner wall blending
Aluma-cut extended oval finishes aluminum port walls at depth without packing
Steel structural sections
deep internal curved blendinglong passage surface finishing
Oval at 6" reach blends internal curved steel surfaces in deep sections
Intake manifolds
long runner wall finishingdeep plenum surface blending
Extended oval smooths manifold runner walls after D Series rough opening at depth
Marine & industrial castings
deep passage wall finishinglong curved surface blending
6" oval reach finishes deep marine engine passage walls after ball rough work
Advantages vs other cut types
Extended Shank E Series oval
vs
Extended Shank D Series ball
Longer stroke at depth — better wall finish
finish
Ball leaves shorter stroke marks on port walls
Fewer passes needed for deep wall finishing
efficiency
More passes needed to blend ball tool marks at depth
Tapered ends — no hard stop marks at passage curves
transitions
Round profile can leave circular marks in passage curves
Less effective for rough material removal at depth
rough work
Best for aggressive rough concave work at depth
Better deep port wall & passage finishing tool
finishing
Better deep rough port opening tool
Who should use Extended Shank E Series Oval Shape Egg burrs
Engine porters & builders
Deep port wall finishing & long passage blend after D Series rough work
Marine engine builders
Deep diesel & marine head passage wall finishing at full depth
Performance engine shops
Final port wall finishing pass on deep aluminum & iron heads
Structural fabricators
Deep internal curved surface blending in long structural sections
Maintenance engineers
Deep in-situ curved surface finishing in confined machinery areas
Safety guidelines
Light pressure on oval tips at extended reach — chipping risk
At 6-inch extended reach, any pressure concentrated on the tapered tips of the oval is amplified. Use the minimum pressure that achieves cutting at the tips — heavy tip pressure at depth causes chipping and can cause the shank to flex and grab. Use the widest part of the oval for main material removal; bring the tips into gentle contact only for transition blending.
Reduce RPM 20–30% and keep tool moving
Reduce RPM by 20 to 30 percent compared to standard shank equivalents. At extended reach the oval shape creates a torque moment during curved surface contact. Keep the oval in continuous motion — never dwell in one position at depth.
Full face shield required
Extended shank oval operations inside deep passages eject chips in confined, unpredictable directions. A full face shield is mandatory for all extended shank E Series operations.
Use aluma-cut for all aluminum deep passage finishing
At extended reach inside aluminum passages, double-cut oval burrs pack immediately. Always use aluma-cut E Series for all aluminum head and manifold deep passage finishing at 6-inch reach.
Inspect shank before every use
Inspect the full 6-inch shank for cracks, bends, or surface marks before every use. Discard any damaged shank immediately.
Eye & hearing protection always
Wear safety glasses and hearing protection on all extended shank operations regardless of duration or material.
How to choose the right shape

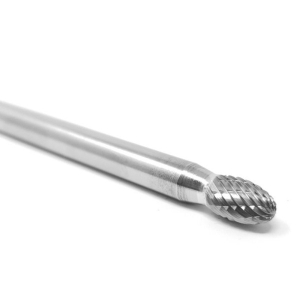

SE-1 XS
1/4" x 3/8" / 6" shank
Fine deep passage blending, tight long curved surface finishing
Best for fine finish work in tight deep passages at reach
SE-2 XS
3/8" x 1/2" / 6" shank
Medium deep passage wall finishing, long curved blending
Most versatile extended shank oval for port wall finishing

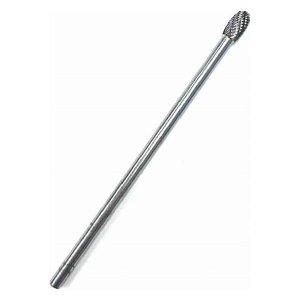

SE-3 XS
1/2" x 3/4" / 6" shank
Wide deep passage wall finishing, diesel head port blending
Most popular size for deep diesel & V8 port wall finishing
SE-4 XS
5/8" x 1" / 6" shank
Wide area deep blending, large passage curved surface finish
Best for wide passage wall finishing in marine & industrial heads
SE-1 XS Aluma
1/4" aluma-cut / 6" shank
Aluminum deep tight passage finishing & runner wall blending
For tight aluminum port passage wall finishing at depth
SE-3 XS Aluma
1/2" aluma-cut / 6" shank
Wide aluminum port wall finishing & deep manifold runner blend
Top pick for deep aluminum V8 & manifold port wall finishing
Frequently asked questions
What is the workflow for using the extended shank E Series after the D Series ball in deep port work?
The standard deep port finishing sequence using extended shank tools is: first, use the extended shank D Series ball to open port volume, remove material, and blend the bowl area at full depth. The ball leaves behind a curved, consistent surface but with short circular tool marks from the ball geometry. Second, use the extended shank E Series oval to make finishing passes along the port walls, blending out the ball tool marks with longer, smoother strokes. The oval produces a more even surface finish on the port walls than the ball at depth, and the tapered ends prevent hard stop marks where each blending stroke ends. For most deep port work, two to three finishing passes with the extended shank oval after the ball work produces an excellent final surface.
Is the extended shank E Series oval available in aluma-cut for deep aluminum port finishing?
Yes. Extended shank E Series oval burrs are available in aluma-cut geometry for deep aluminum head port wall finishing and intake manifold runner blending at full reach. The aluma-cut extended oval is particularly valuable for the finishing pass in long aluminum manifold runner work — clearing the ball tool marks at depth while keeping chips evacuated continuously during the finishing pass. Contact us at 1-800-645-1679 to confirm current size and availability.
Can I use the extended shank E Series oval for surface blending inside deep structural steel sections?
Yes. The extended shank oval is effective for blending curved internal surfaces and transition zones inside deep structural steel box sections and channels, where the section depth exceeds standard shank reach. For steel section internal work, use double-cut geometry. Keep the shank clear of the section walls during strokes, work with 20 to 30 percent reduced RPM, and use smooth continuous strokes along the internal curved surface. For aluminum structural sections, use the aluma-cut version. Contact us at 1-800-645-1679 for advice on specific extended shank oval applications for structural work.
Why buy from Carbide Burrs Direct
USA-made Extended Shank E Series oval — deep passage wall finishing at full reach
Longer strokes, smoother finish at 6-inch depth — the final finishing tool for deep port work.
SE-1 through SE-4 extended shank in stock — 1/4" through 5/8" for all passage sizes
Double cut & aluma-cut — iron head & aluminum head deep finishing covered
Standard 1/4" shank diameter — fits all die grinders without adapter
Professional resharpening — restore oval profile for continued deep finishing use
