When your job demands a smooth finish rather than raw stock removal — weld prep, surface blending, edge finishing — a standard double-cut burr leaves too rough a surface. Drag Cut burrs use a 55-degree hi-helix single flute that slices cleanly through steel and non-ferrous metals in a single dragging action, leaving a consistently smooth surface finish with far less vibration than conventional cut styles.
55°
hi-helix angle
1/4"
standard shank
USA
manufactured
Key features & benefits
55° hi-helix single flute
High helix angle creates a slicing, dragging cut that produces a significantly smoother surface finish than standard cut styles on every pass.
Minimal vibration & chatter
Hi-helix geometry virtually eliminates the harmonic chatter that causes hand fatigue and rough surfaces with standard cut burrs.
Runs cooler than double cut
Single wide flute evacuates heat and chips continuously — the workpiece surface stays cooler for a cleaner finish.
Works on steel & non-ferrous
Effective on mild steel, stainless, aluminum, and soft metals — one burr for finish work across your full material range.
Extended 6" shank available
Extended shank Drag Cut burrs for weld prep and finishing in deep joints, structural sections, and hard-to-reach areas.
Wholesale direct pricing
Factory-direct pricing from our USA facility — no distributor markup on Drag Cut specialty tooling.
Materials & finishing applications
Material
Primary applications
Why Drag Cut works best
Mild & carbon steel
weld prepsurface blendingedge finishing
Hi-helix slicing action produces smooth finish in fewer passes
Stainless steel
weld toe blendingsurface finishing
Smooth cut reduces work-hardening risk compared to coarser cut styles
Aluminum & non-ferrous
surface blendinglight finishing
Hi-helix clears aluminum chips without packing for clean finish work
Structural steel
weld joint prepseam blending
Extended shank option reaches deep weld seams in box sections
Sheet metal
edge deburringburr removal
Low vibration prevents distortion of thin sheet during finishing
Drag Cut vs double cut vs single cut
Drag Cut (hi-helix)
vs
Standard double cut
Smoother surface finish in fewer passes
finish
Rougher finish, more secondary work needed
Near-zero vibration & chatter
vibration
High harmonic chatter on finishing passes
Cooler cutting — less heat at surface
heat
More heat buildup during finish work
Works on steel & non-ferrous
range
Can pack on aluminum during finish cuts
Slower bulk stock removal
removal
Faster on heavy stock removal
Who should use Drag Cut burrs
Welders & fabricators
Weld toe blending, joint prep & post-weld finishing
Structural steel workers
Deep weld seam blending in box sections & beams
Sheet metal workers
Edge deburring & surface finishing on thin gauge
Automotive refinishers
Body panel weld blending & surface prep for paint
Pipe & vessel fabricators
Stainless weld finishing on pressure vessels & pipework
Safety guidelines
Drag Cut is for finishing, not bulk removal
Applying heavy cutting pressure on Drag Cut burrs — treating them like a coarse double-cut — overloads the single hi-helix flute and causes premature edge failure. Use light, consistent passes for finishing work.
Direction of cut matters
The hi-helix geometry is optimised for a specific cutting direction. Running the burr in the wrong rotation direction produces a rubbing action rather than a cutting action — check your grinder rotation before starting.
Full face shield required
Even on finishing passes, fine metal chips eject at high velocity. Always wear a full face shield — safety glasses alone are not adequate for die grinder operations.
Match RPM to application
Drag Cut burrs produce their best finish at moderate RPM. Excessive speed on finishing passes creates a burnishing action rather than a clean cut — stay within the recommended RPM range for your head diameter.
Secure thin sheet before finishing
While Drag Cut produces low vibration, thin sheet metal can still resonate under the burr. Clamp thin gauge work firmly to prevent sheet movement and ensure a consistent finish.
Eye & hearing protection always
Wear safety glasses and hearing protection on all grinding and finishing operations regardless of duration.
Best shapes for finish work
A series
Cylindrical
Flat weld bead blending, surface finishing on steel
Fastest for flat weld toe blend on structural steel
B series
Cylindrical ball end
Curved surface finishing, fillet blending
Best for smooth weld fillet blending in tight corners
D series
Ball shape
Concave finishing, contour blending on curved welds
Ideal for smooth radius finishing on pipe saddle welds

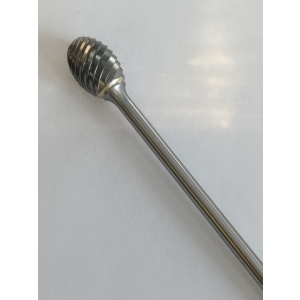

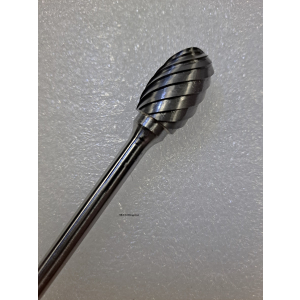

E series
Oval / egg
Smooth curved recesses, transition blending
Best shape for blending plate-to-pipe weld transitions

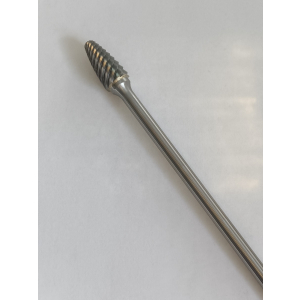

F series
Tree radius end
Deep V-groove finishing, weld root blending
Reaches weld root in structural box sections cleanly

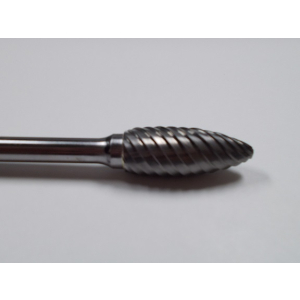

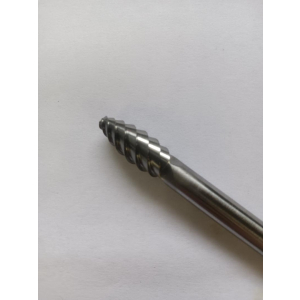

H series
Flame shape
Curved bore finishing, port surface blending
Smoothest finish on curved internal surface transitions
Frequently asked questions
What makes the Drag Cut different from a standard single-cut burr?
A standard single-cut burr has a low to moderate helix angle — typically 10 to 20 degrees — which produces a moderate cutting action and a moderately rough finish. The Drag Cut uses a 55-degree hi-helix angle, which means the flute is almost axial relative to the workpiece. This extreme angle creates a true slicing or dragging action rather than a scraping action, which is why it produces a dramatically smoother surface finish with far less vibration than any standard single or double-cut burr.
Can Drag Cut burrs be used for initial weld removal before finishing?
Drag Cut is optimised for finishing and blending rather than heavy weld removal. For significant weld bead removal, start with a double-cut or Krazy Kut burr to remove the bulk of the material, then switch to Drag Cut for the final finishing passes. Using Drag Cut for heavy removal overloads the hi-helix flute and shortens tool life significantly. Think of it as your finishing tool — not your roughing tool.
Are Drag Cut burrs available with an extended shank?
Yes. Drag Cut burrs are available with 6-inch extended steel shanks for weld prep and finishing in deep structural sections, box beams, and other areas where a standard 2-inch shank cannot reach. Contact us at 1-800-645-1679 to confirm shape and diameter availability for extended shank Drag Cut burrs, as not all shapes are stocked in extended lengths at all times.
Why buy from Carbide Burrs Direct
USA-made Drag Cut burrs — the professional's finishing tool
When surface finish matters, the 55° hi-helix is the only cut style for the job.
55° hi-helix exclusive geometry — smoother finish than any standard cut style
Extended 6" shank available — reach deep weld seams in structural sections
Works on steel, stainless & aluminum — one finishing burr across your material range
All shapes in stock — cylindrical, ball, oval, tree, flame ready to ship
Professional resharpening available — restore the hi-helix edge for continued use
Fast shipping — same or next business day on all in-stock items
