Iron Cut carbide burrs for cast iron & hard ferrous metals
Cast iron is abrasive, brittle, and punishing on cutting tools — standard burrs wear out fast, chip easily, and leave a rough, torn surface. Iron Cut burrs are purpose-built for this punishment, with a specially designed coarse flute pitch and reinforced edge geometry that aggressively removes cast iron material while staying sharp pass after pass.
IC
iron cut geometry
1/4"
standard shank
USA
manufactured
Key features & benefits
Cast iron specific flute pitch
Coarse flute pitch designed for cast iron's brittle chip structure — clears graphite-laden chips without loading or glazing.
Reinforced edge geometry
Heavier edge backing resists the micro-chipping that cast iron's abrasive nature causes on standard carbide flutes.
Aggressive stock removal
Removes cast iron material rapidly — ideal for casting cleanup, flash removal, and machining misruns.
Longer tool life on abrasive metals
Outperforms standard double-cut burrs 3:1 on cast iron — the reinforced geometry resists the constant micro-abrasion.
All major shapes available
Cylindrical, ball, tree, flame, and taper series — every shape needed for casting and iron fabrication work.
Factory-direct wholesale pricing
USA-manufactured, sold direct — no distributor markup on specialty iron cut tooling.
Cast iron & ferrous metal applications
Material
Primary applications
Why Iron Cut works best
Grey cast iron
casting cleanupflash removalporting
Coarse geometry handles graphite flake structure without loading
Solid carbide hardness matches extremely hard chilled iron surfaces
Hard ferrous alloys
hardened steel repairtool steel rework
Aggressive flute angle maintains cutting action on surfaces up to 55 HRC
Malleable iron
pipe fittingsagricultural equipment
Consistent chip clearance on malleable iron's variable hardness zones
Iron Cut vs double cut vs single cut
Iron Cut
vs
Standard double cut
Purpose-built for cast iron chip structure
cast iron
Loads rapidly with graphite chips
3x longer edge life on abrasive metals
tool life
Rapid micro-chipping on cast iron
Reinforced edge resists micro-chipping
durability
Standard edge backs chip on abrasive surfaces
Aggressive removal on hard ferrous alloys
performance
Slows significantly above 45 HRC
Not for soft metals or aluminum
range
Versatile across all ferrous metals
Who should use Iron Cut burrs
Foundry workers
Casting flash removal, gate & riser cleanup
Engine rebuilders
Cast iron block porting & surface prep
Heavy equipment technicians
Iron component repair on farm & construction equipment
Pipe fitters
Cast & ductile iron pipe joint prep & deburring
Machine shop machinists
Hard ferrous alloy rework & die repair above 45 HRC
Safety guidelines
Cast iron dust is a serious respiratory hazard
Cast iron grinding produces fine graphite and iron oxide dust. Always work in a well-ventilated area and wear a P100 respirator — not just a dust mask — when grinding cast iron indoors.
Check for hidden hard spots before cutting
Chilled iron zones in castings can be significantly harder than the surrounding material. Hitting a hard spot at full RPM causes sudden burr deflection — always start slowly on unknown castings.
Full face shield & eye protection
Cast iron chips are brittle and eject as sharp shards in unpredictable directions. A full face shield is mandatory — standard safety glasses do not provide adequate coverage.
Clear chips frequently
Cast iron chips can pack into flutes even on Iron Cut burrs during heavy passes. Stop and clear chips every 30–45 seconds on deep material removal to maintain cutting efficiency and prevent heat buildup.
Eye & hearing protection always
Wear safety glasses and hearing protection on all grinding operations regardless of duration.
Clamp the workpiece securely
Cast iron castings can shift unexpectedly under the lateral forces of aggressive grinding. Always secure the workpiece before starting — never grind cast iron freehand.
Best shapes for cast iron work
A series
Cylindrical
Flat cast iron surfaces, parting line cleanup
Best for rapid parting line removal on engine blocks
B series
Cylindrical ball end
Blind recesses, pocket cleanup in iron castings
Ideal for cleaning up misrun pockets in grey iron
D series
Ball shape
Concave casting surfaces, port contouring in iron heads
Top pick for cast iron cylinder head port opening
F series
Tree radius end
Deep cast iron grooves, riser stump removal
Fastest shape for reaching deep casting gates

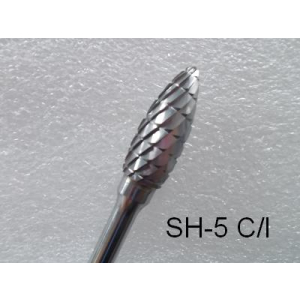

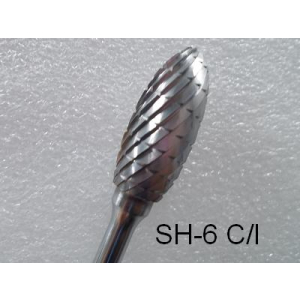

H series
Flame shape
Cast iron port work, curved bore surfaces
Best for cast iron exhaust port throat blending
J/K series
Taper / cone
Deburring cast iron holes, chamfering & countersinking
Cleans drilled hole burrs in iron castings without chipping
Frequently asked questions
Why does cast iron destroy standard carbide burrs so quickly?
Cast iron contains free graphite flakes that act as an abrasive, constantly wearing the cutting edges of standard carbide burrs. The fine double-cut flute geometry is particularly vulnerable — the small flute backs chip under this continuous micro-abrasion. Iron Cut burrs use a coarser flute pitch with a reinforced edge backing that is specifically designed to resist this abrasive wear mechanism, giving you 3x the tool life of standard burrs on cast iron.
Can Iron Cut burrs be used on ductile iron and malleable iron?
Yes. Iron Cut burrs work effectively on ductile iron, malleable iron, and grey iron. Ductile iron produces a tougher, more stringy chip than grey iron — the coarse flute pitch of the Iron Cut handles this without loading. On malleable iron, which can have variable hardness zones, maintain consistent moderate cutting pressure and check the flutes regularly for any chip packing in the harder regions.
Should I use coolant or cutting fluid with Iron Cut burrs on cast iron?
Generally no — cast iron is typically machined dry because cutting fluids can cause the fine cast iron dust to form an abrasive slurry that accelerates tool wear. The Iron Cut geometry is designed to run dry on cast iron. For very hard chilled iron zones, a light air blast to clear chips and cool the workpiece is more effective and safer than liquid coolant with die grinder work.
Why buy from Carbide Burrs Direct
USA-manufactured Iron Cut burrs built for foundry & casting work
Purpose-built for the abrasive punishment that destroys standard burrs.
Iron Cut exclusive geometry — reinforced flute edge designed specifically for cast iron abrasion resistance
Grey, ductile, malleable & chilled iron — one burr that handles all iron types
3x tool life vs standard double cut on cast iron — lower cost per job
Professional resharpening service — restore Iron Cut edges for continued use
All shapes in stock — cylindrical, ball, tree, flame, taper ready to ship
Fast shipping — same or next business day on all in-stock items
