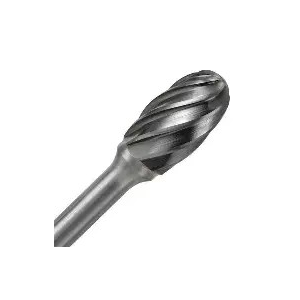

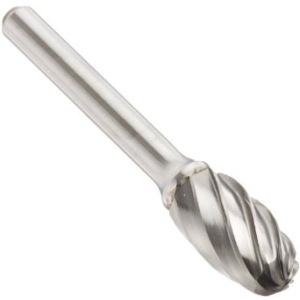

SE Series Aluma-Cut oval carbide burrs — egg shape for aluminum, brass & copper
The E series oval — commonly called the egg burr — is the shape you reach for when a flat cylindrical burr gouges and a ball burr digs. Its tapered ellipse rolls across a curved surface, letting you blend a radius or open a concave recess without ever leaving a step. Ground in Aluma-Cut geometry: wide, deep single-cut flutes that eject soft aluminum chips instead of packing them, giving you a clean cutting edge from the first pass to the last. Solid tungsten carbide, manufactured in our USA facility and sold factory-direct.
SE
series designation
Aluma-Cut
single-cut flute
USA
manufactured
Key features & benefits
Solid tungsten carbide throughout
Not carbide-tipped, not HSS, not an imported blank with a domestic label. Solid carbide from shank to head — the only construction that survives sustained aluminum removal without deflection.
Aluma-Cut flutes reject aluminum loading
Aluminum welds itself into a standard flute within seconds. Aluma-Cut's wide, sharply relieved single-cut flute gives the chip somewhere to go, so the burr keeps cutting instead of smearing.
Oval profile blends without stepping
The elliptical head contacts the work along a curve rather than a corner. That contact geometry is what lets you feather one surface into another with no witness line to sand out afterward.
Factory-direct wholesale pricing
You are buying from the manufacturer. No distributor sits between our grinding room and your bench, and the same pricing structure serves production shops and individual buyers alike.
Professional resharpening service
Every solid carbide E series burr can be professionally resharpened, extending tool life by 3 to 5 additional cycles and cutting long-term tooling cost dramatically.
Same & next day shipping
In-stock SE series heads ship same or next business day from our USA facility — no overseas lead time on the tools your shop needs running today.
Materials & applications
Material type
Recommended cut style
Key applications
Aluminum & aluminum alloys
aluma-cut
Porting, deburring, shaping, mold & die cleanup
Brass & bronze
aluma-cut
Valve work, fitting deburr, decorative shaping
Copper
aluma-cut
Busbar dressing, tube prep, sculpture & art metal
Magnesium & zinc
aluma-cut
Die-cast flash removal, gate cleanup
Plastics, acrylic & composites
aluma-cutsingle cut
Trimming, edge finishing, fitting
Wood & MDF
aluma-cut
Carving, relief work, shaping, inlay pockets
Advantages vs other cut types
E series — oval / egg
vs
D series — ball / sphere
Blends flat into curved with no step
blending
Ball radius leaves a scalloped witness line
Elliptical nose reaches deep concave pockets
reach
Sphere bottoms out at its own radius
Long contact patch removes stock evenly
control
Point contact concentrates cut — digs easily
Ideal for radius and fillet transitions
fillet work
Cuts a fixed radius only — no taper
Tip works detail, body works volume
versatility
Single working radius across the whole head
Who should use E Series Oval Shape Egg burrs
Aluminum fabricators
Deburring, weld dressing & edge prep on plate and extrusion
Aerospace & automotive
Alloy component finishing, port work & bracket cleanup
Copper, brass & wood carving with fine surface control
Woodworkers & carvers
Relief carving, pocket work & inlay shaping in hardwood
Safety guidelines
Match RPM to head diameter — always
Running a large oval head at small-burr RPM is the most common cause of E series failure. As head diameter increases, maximum safe RPM falls sharply. Consult the RPM chart for each head size before you pull the trigger, and reduce speed whenever you step up a size.
Never run Aluma-Cut on hardened or ferrous steel
The wide-flute single-cut geometry that clears aluminum chips so cleanly has no edge support against hardened steel. Running an Aluma-Cut burr on steel chips the cutting edge within seconds and can fracture the head. Use a double-cut burr on ferrous material — every time.
Full face shield required for all grinding operations
Aluminum swarf leaves the burr as long, hot, curling chips travelling at high velocity. A full face shield — not just safety glasses — is required for all die grinder work.
Inspect burr before every use
Visually inspect the head and shank before inserting into the grinder. Any crack, chip, or bent shank is grounds for immediate discard — a damaged carbide burr at speed is an ejection and injury risk.
Secure workpiece before grinding
Always clamp or fixture the workpiece before starting. Soft aluminum stock walks under burr pressure far more readily than steel, and an unsecured part is a leading cause of die grinder injuries.
Eye & hearing protection always
Wear safety glasses and hearing protection on all die grinder operations regardless of duration or head size.
The blending specialist — flat into curve with no witness line
D series
Ball / sphere
Round pockets, organic sculpting, hollow contour work
Choose D when you want a defined radius rather than a blend
F series
Tree radius end
Deep grooves, weld root access, contoured channels
Choose F when the oval is too fat to enter the feature
A series
Cylindrical
Flat surfaces, slots, right-angle edge work
Choose A when the surface is flat and the corner must stay square
Frequently asked questions
What is an E series oval carbide burr used for?
The E series — the oval or egg burr — is used for blending, contouring and opening concave recesses. Its elliptical head lets you work a curved surface without the corner contact that makes a cylindrical burr gouge, and without the single fixed radius that makes a ball burr leave a scalloped witness line. In aluminum work it is the standard choice for feathering a weld into surrounding material, smoothing a port transition, and cleaning up mold cavity fillets.
Why use Aluma-Cut instead of double cut on aluminum?
A double-cut burr has two crossing flute sets that produce a fine chip. In steel that chip clears easily. In aluminum it does not — the soft material fills the tight flute pockets, welds to the carbide, and the burr stops cutting and starts smearing within seconds. Aluma-Cut uses a wide, deep single-cut flute with aggressive relief so the chip curls out of the flute and away from the work. The result is a burr that keeps a clean edge, runs cooler, and leaves a better finish on aluminum, brass, copper and plastics.
What RPM should I run an SE Aluma-Cut burr at?
RPM is set by head diameter, not by cut style. As a general guide: 1/4-inch heads run at 50,000 to 60,000 RPM; 1/2-inch heads at 25,000 to 35,000 RPM; 3/4-inch heads at 15,000 to 20,000 RPM; and 1-inch heads at 10,000 to 15,000 RPM. The aim is a consistent surface speed at the cutting edge, so a larger head must turn slower. Always reduce RPM when stepping up a head size, and never exceed the rated speed of your grinder. If you have questions about a specific setup, call us at 1-800-645-1679.
Why buy from Carbide Burrs Direct
USA-manufactured SE series Aluma-Cut burrs — direct from the factory
Solid tungsten carbide, single-cut Aluma-Cut geometry, ground and finished in our USA facility.
Purpose-ground Aluma-Cut flutes — no chip packing, no loading on aluminum
Full oval / egg range in stock — every head diameter and length of cut
Factory-direct pricing — no distributor markup on any order
Professional resharpening service — 3 to 5 additional use cycles per burr
1/4" & 1/8" shank sizes — die grinder to precision rotary tool coverage
Same or next day shipping on in-stock items from our USA facility
