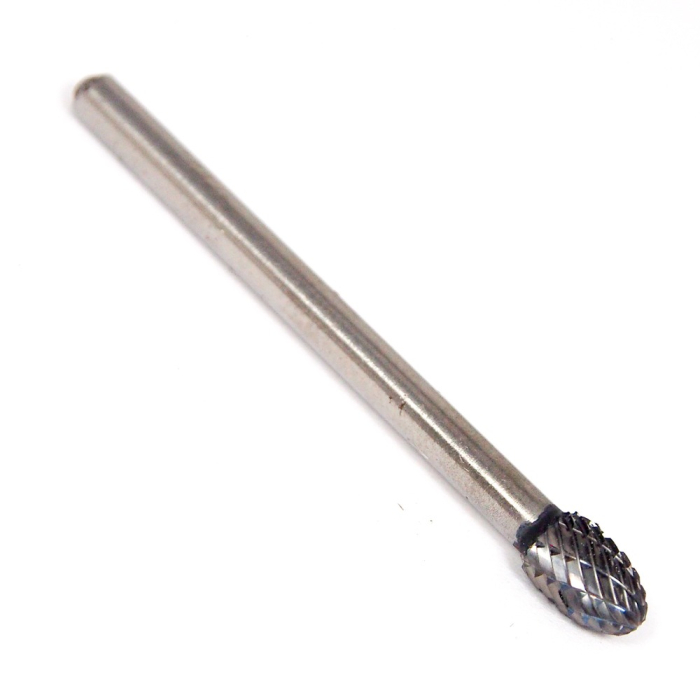

SE-53 L3 Extended Shank Oval Shape Burr 3/16" Head
The SE-53 L3 Extended Shank Oval Shape Burr 3/16" Head (005-12062 XL) is a precision-ground, USA manufactured solid tungsten carbide burr in the Extended Shank E Series Oval Shape Egg. With a 3/16" head diameter, 1/2" length of cut, and a 1/8" X 3" shank, it delivers controlled stock removal and clean finishes. Extended shank reaches deep cavities standard burrs cannot access. Available in Single Cut and Double Cut.
Available in Single Cut and Double Cut
Extended shank reaches deep cavities and recessed areas standard burrs cannot access
Solid tungsten carbide, not coated steel
Head diameter 3/16", length of cut 1/2", shank 1/8" X 3"
USA manufactured
Head Diam3/16"
Cut Length1/2"
Shank1/8
OAL3
Specifications
SKU / Part Number005-12062 XL
Shape / TypeExtended Shank
Cut TypeSingle Cut / Double Cut
Head Diameter3/16"
Shank Diameter1/8
Length of Cut1/2"
Overall Length3
MaterialSolid Tungsten Carbide
Material CompatibilityMetal, Wood
Brand / ManufacturerCarbide Burrs Direct
Made InUSA
Key Features
◆Extended shank reach
The long shank reaches deep casting recesses, engine ports, and confined areas that standard-length burrs cannot access.
◆Tight-tolerance grinding
Head diameter held to +/-0.001" at the 3/16" head size, even at extended reach.
◆Single Cut and Double Cut available
Single cut removes material fast. Double cut gives an ultra-smooth surface and maximum control at extended length. Oval Egg shape combines a tapered body with a rounded tip, ideal for contouring.
◆USA manufactured quality
Every extended shank burr is ground in the USA to ANSI tolerances.
Use this guide to pick the right 005-12062 XL configuration for your application before ordering.
Choose this extended shank if...
You need to reach deep cavities or recessed features
Working inside engine ports, manifolds, or deep mold cavities
Standard-length burrs cannot reach your work area
You need consistent diameter at extended reach
Extended shank burrs require steady hand and lower feed pressure to avoid deflection at the tip.
Choose a standard shank if...
Your work area is accessible with a standard-length burr
You need maximum rigidity and minimal deflection at the tip
Working on surface or shallow material removal
The additional length is not required for your application
If a standard burr can reach your work, use it. Shorter length gives more rigidity and control.
Compatibility note: The 005-12062 XL uses a 1/8 shank. Verify your collet accepts this diameter before ordering. Call 1-844-313-7153 with questions.
Frequently Asked Questions
Why choose an extended shank burr like the 005-12062 XL?
Extended shank burrs are designed for applications where the work area cannot be reached with a standard-length burr. Common uses include deep engine ports, manifold grinding, cavity work in molds and dies, and any recessed feature.
What is the difference between Single Cut and Double Cut on the 005-12062 XL?
Single Cut removes material quickly with a good surface finish. Double Cut combines right and left-hand flutes for a much finer finish with less vibration. For extended shank work, Double Cut is often preferred as it reduces tip deflection.
What RPM should I run the 005-12062 XL at?
For a 3/16" head diameter on an extended shank, recommended speed is 25,000 to 40,000 RPM. Reduce speed compared to a standard burr to minimise deflection and vibration at the tip. Call 1-844-313-7153 for application-specific guidance.
